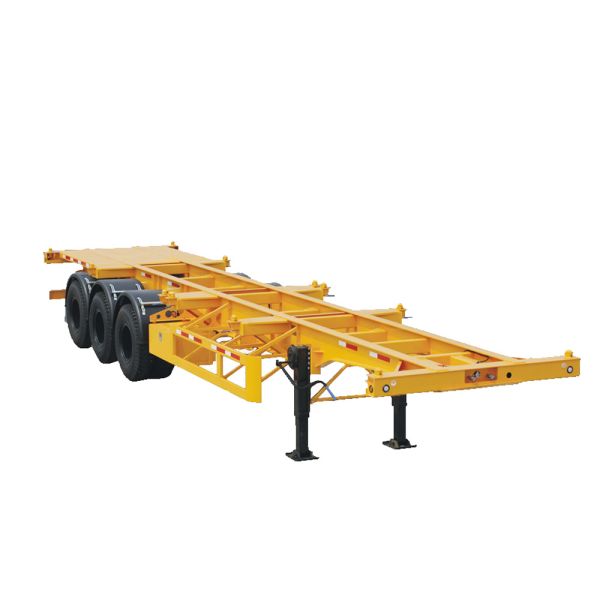

Skeletal Semi Trailer - ST926

Skeletal trailers, also called semiskel trailers, are lightweight semitrailers usually designed for transporting containers. They can be specified in a large number of size configurations, such as: 20-foot container. 30-foot container.

Box Body Dimention: 9790mm*2300mm*600mm

Tare Weight                   : 600kg                         Pay Load                                    30ton

King Pin Setting            : 950mm                      Rear Overhang                           2245mm

Track                             : 1840mm                    Loading suface hight                1480mm

Wheel Base                   : 5500mm+1305mm

Steel spring                   : 10/10/10 Leave spring suspension

Suspension                    : Dual-axle mechanical suspension

Traction Pin                   : 50mm or 90mm

Tires                               : 10.00-20,11.00-20,11.00R20,12.00-20,12.00R20,8Units

Axles                              : FUWA, BPW axle or optional upon choice

Breakes                           : Dual lines pneumatic break system, WABCO Emergency Relay

Material of main beam   : The hight of the beam is 500mm, upper plate is 14mm, d middle plate is 8mm

Side Guard                      : Tail lamp with turn signal, break light and reflector, side lamp, One set 6-score standard                                                cable, 600 or 800 detachable side wall

Painting                          : Optional

Electrical System             : Voltage:24v, Receptacle:7 Ways (7 wires harness)
