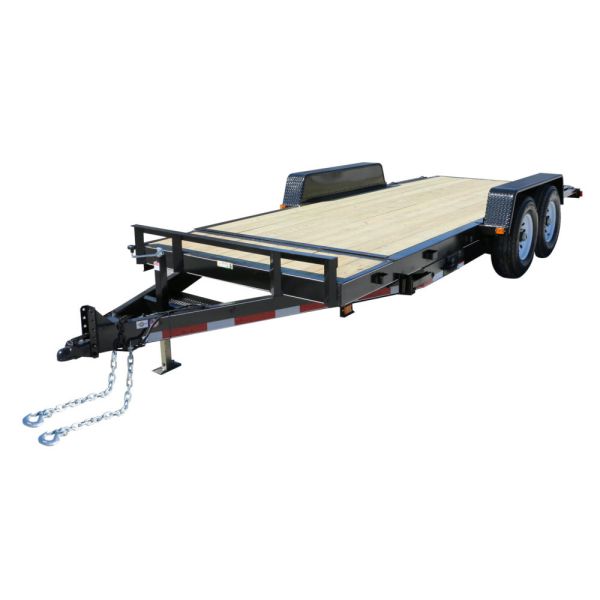

Flat Bed Semi Trailer - FBT121

Flatbed trailers are widely used and highly versatile, making them one of the most popular trailers seen on the roads today. Typically, freight is loaded onto the tip, sides, and rear of the flatbed. With this easy loading capability, flatbeds have become one of the cornerstones of today’s trucking industry.

A flatbed trailer can carry a maximum legal freight weight of 48,000 pound

Overall Dimention: 12500mm*2500mm*1550mm

Tare Weight                   : 7350kg                     loading Weight                            40000-60000kg

Suspension                    : Common Mechanical Suspension

Tires                               : 12R22.5, 12units

Axles                              : FUWA, BPW Brand, 13T capacity

Breakes                           : Dual lines breaking system, WABCO Emergency Relay Value,

Steel spring                    : 10/10/10 Leaf spring suspension

Spare Wheel Bracket       : 2 pieaces

Material of main beam   : The hight of the beam is 500mm, upper plate is 14mm, down plate is 16mm,                                                                 middle plate is 8mm

King Pin                          :  Size 50# (2") or 90# ( 3.5"); Type:welded or assembled

Platform plate                 : 3mm diamond plate

Twist Locker                      :12pcs container lock

Break Air Chamber            : Six big chamber

Tool Box                           : 1 tool box, lenght 1.5m

Side Guard                      : Tail lamp with turn signal, break light and reflector, side lamp, One set 6-score standard                                                cable

Electrical System             : Voltage:24v, Receptacle:7 Ways (7 wires harness)

Paint                                 : Sand blasting before painting, color upon request
