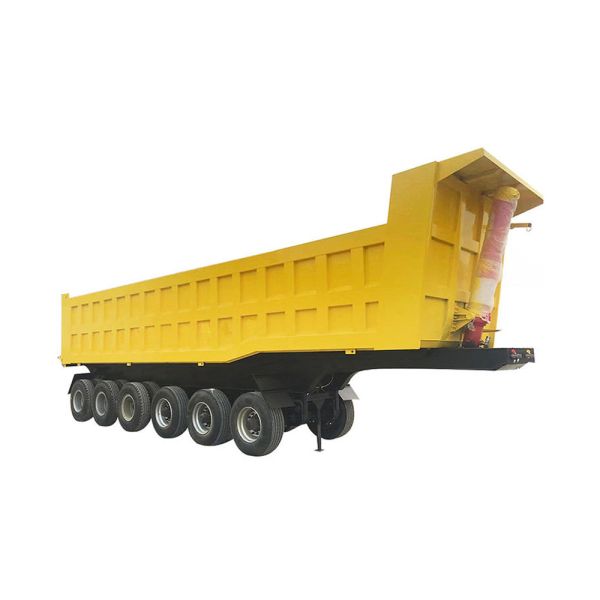

Rear Dump Semi Trailer - RDT238

A dump truck, known also as a dumping truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials (such as dirt, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia, South Africa and India the term applies to off-road construction plants only and the road vehicle is known as a tip lorry, tipper lorry (UK, India), tipper truck, tip truck, tip trailer or tipper trailer or simply a tipper (Australia, New Zealand

Overall dimension    : 10950* 2500*3620mm             Tare Weight      11000kg

Capacity                   : 13T/16T         Payload              60000kg

Chassis             : Heavy duty and extra durability designed I beam; option for high tensile Q345, welded by atomatic submerged-arc                             processes. Top flange 18mm, width 140mm, middle flange 10mm, bottom flange 20mm, width 140mm

Axle                 : FUWA, BPw axle or optional upon choice

Suspension        : Mechanical suspension or air suspension

Leaf spring         : Leaf spring or air bag,   floor,      8mm plate,side wall 6mm

Tire                   :11.00R20,12.00R20,11R22.5,315/80R22.5 Tire optional

Wheel rim           : 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice

Kingpin              : 2''/3.5'' bolt-in kingpin

Landing gear       : JOST brand two-speed, manual oprating, heavy duty landing gear

Steel sheet         : Floor thickness 8mm, side wall thickness 6mm

Breaking system  : WABCO RES relay valve T30/30 spring break chamber, 40L air tanks

Painting              : Compete chassis and blasting to clean rust, 1 coat of anti corrosive prime, 2 coat of final paint

Accessories          : One standard tool box
