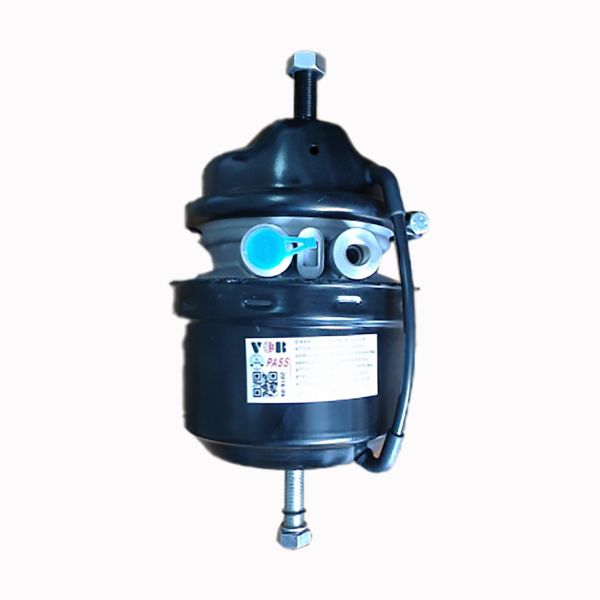

KFD Air Brake Chamber - FA1078F
The Air Brake Chamber is a vital component in an air brake system, converting air pressure into mechanical force to activate the brakes. It consists of a diaphragm that moves when pressurized air is applied, enabling effective braking action. Proper functioning of the air brake chamber is essential for vehicle safety and reliable braking performance. Regular inspection and maintenance are crucial to ensure optimal operation and prevent braking issues.
Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. ... A service brake chamber contains a flexible rubber disc called a diaphragm, a metal rod called a pushrod and a return spring.
The basic function of an air brake chamber is to convert air pressure to mechanical movement. When the relay valve on a trailer allows air to enter a brake chamber, the increase in air pressure displaces a rubber diaphragm which extends a steel push rod which ultimately is responsible for activating the brakes.
REFERENCE N0.
T20/24DP
STROKE: 64mm
PORT THREAD: M22x1.5
BOLT THREAD: M16x1.5
BOLT CENTRE: 120.7
PUSH ROD THREAD: M16x1.5
PUSH ROD LENGHT: 285MM
Part Number | FA1078F |
---|---|
Filter Type | filter_product_quality |
Weight | 4.300000 |
Manufacturer | Zhuji Weicheng |
Country of Manufacture | China |
Fragile | Yes |
Warranty | 12 Months |
Signs and symptoms when defective |
|
Which automobile uses this part? | Cars & SUV |
